Case 5: Helicopter
Case Introduction

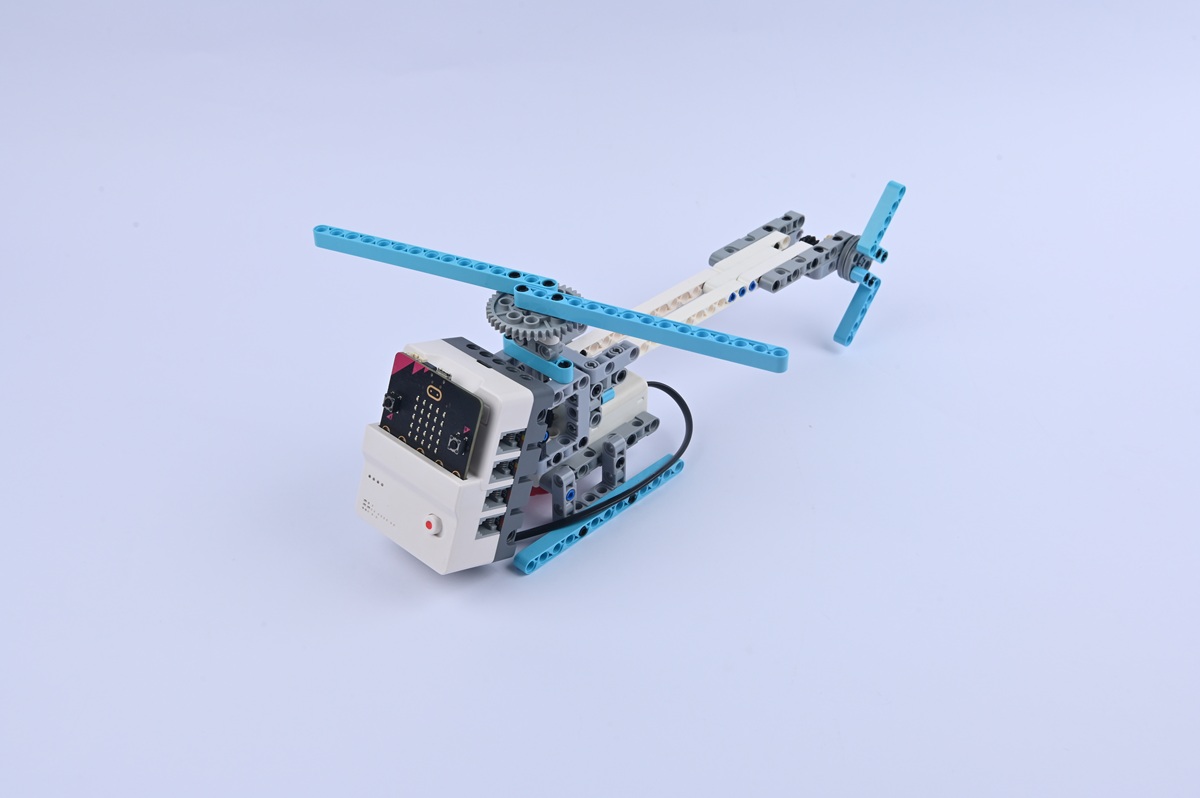

Build a helicopter and make the propeller rotate through gear transmission.
Teaching Preparation

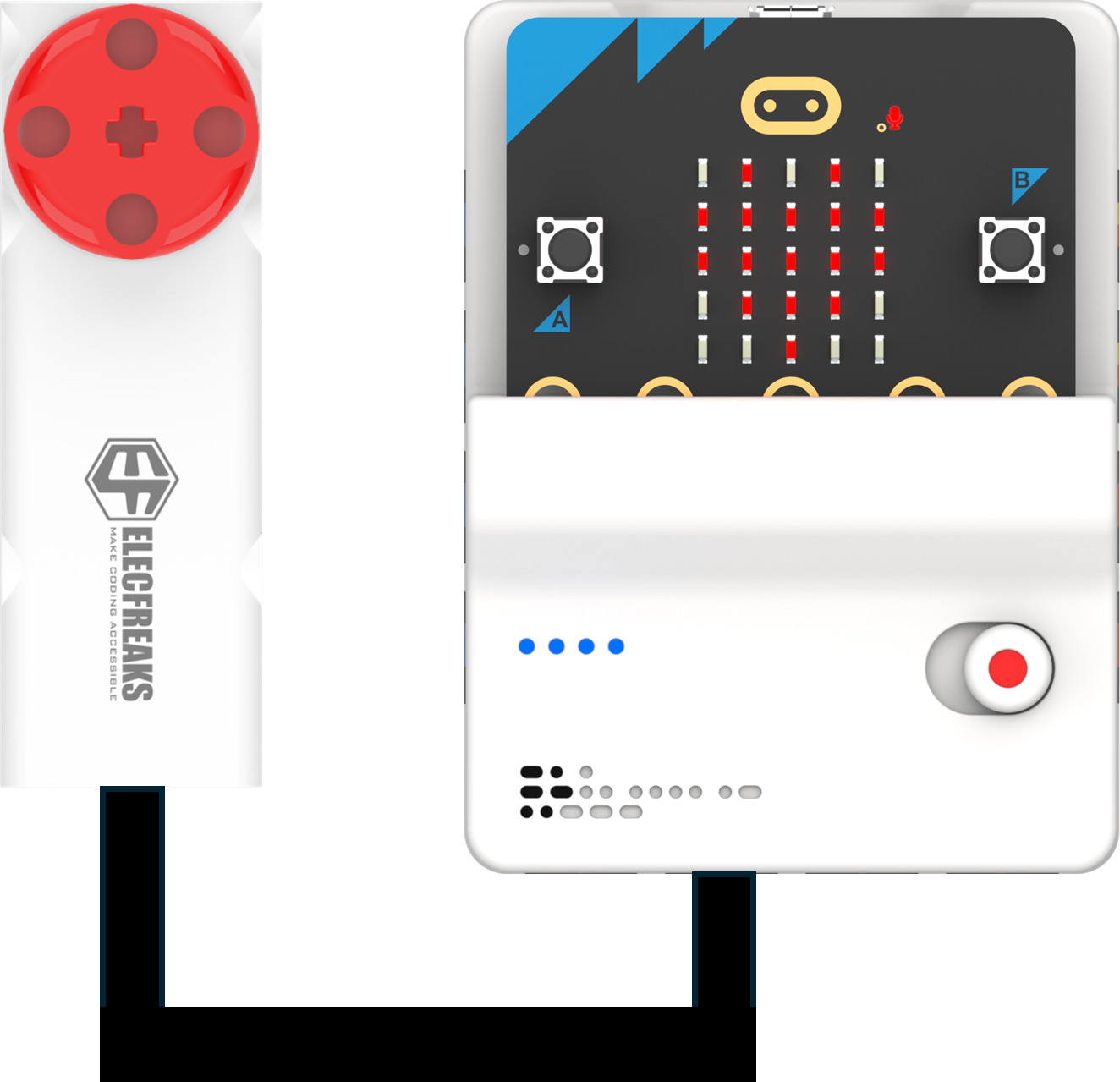

| Name | Illustration |
|---|---|
| Nezha Pro AI Mechanical Power Kit |  |
Teaching Objectives
- Complete the assembly of the helicopter model, master the assembly methods of the gear transmission structure and propeller, correctly connect the power components, and realize the stable rotation of the propeller.
- Understand how gear transmission transfers motor power to the propeller, recognize the connection between propeller rotation and "simulated lift", and learn about the impact of gear speed on the rotation speed of the propeller.
- During the process of adjusting gear engagement and propeller installation angle, cultivate hands-on ability and attention to details, and learn to solve problems such as propeller rotation jamming and eccentricity.
- Stimulate interest in aerospace technology, perceive the connection between mechanical structures and flight principles, and establish a preliminary understanding of "technology realizing the dream of flight".
Story Introduction
As Tiaotiao resumed its patrol, a strange buzzing sound came from the sky. The helicopter robot "Xuan Yi" (Rotor), which was in charge of reconnaissance, tumbled awkwardly onto the roof, its propeller broken. "It was supposed to fly above the clouds to monitor the movements of the gear beasts!" the robot in the watchtower pointed at the sky. "Now we’re like being blind!" Aji unfolded the helicopter’s mechanical diagram: "Look at this set of gears—they transfer power from the engine to the propeller. Just like how a bicycle chain drives the wheels, we can’t do without them."
Learning Exploration
- How many sets of gears does the helicopter model use to transfer motor power to the propeller? Try replacing gears with different numbers of teeth—how does the rotation speed of the propeller change?
- Does the installation angle of the propeller affect its "simulated lift"? What problems (such as shaking during rotation or loud noise) will occur if the propeller is installed too loosely or at an inclined angle?
- Compare the structure of a real helicopter with the model—what core component of a real helicopter (e.g., reducer) does the gear transmission in the model simulate? Why do real helicopters need a reducer?
- What component can be added to the existing structure to enable the helicopter model to "turn"? (Hint: Refer to the tail rotor of a real helicopter)
