Accelerometer Gyroscope
Introduction
Features
Accelerometer Gyroscope: Can accurately measure an object's angular velocity and acceleration, while real-time tracking of the object's rotation and tilting dynamics, ensuring precise motion sensing and smooth operation of devices.
Specifications
| Item | Parameter |
|---|---|
| Name | Accelerometer Gyroscope |
| SKU | EF16014 |
| Connection Type | Analog Output |
| Operating Voltage | 4.15V |
| Product Dimensions | 38.00mm × 28.20mm (Length × Width) |

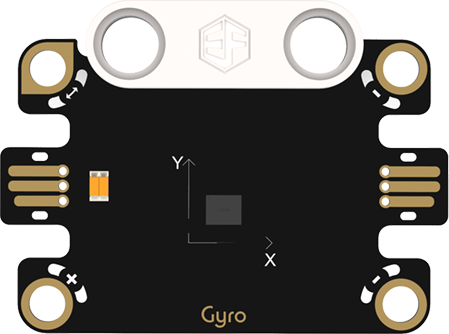

Appearance and Dimensions
Product Links
Quick Start

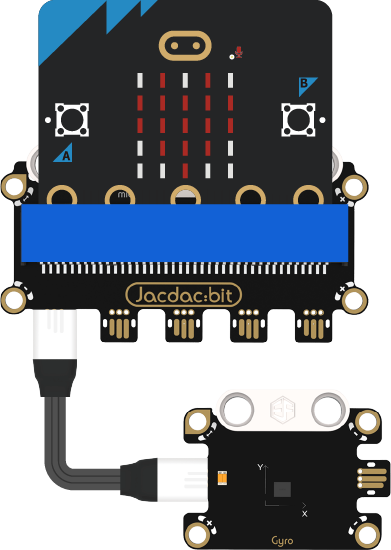

Hardware Connection Diagram
Usage Tutorial
Programming Software
MakeCode Programming
Step 1: How to Add Jacdac Extension
- Go to Microsoft MakeCode and click "New Project".
- Enter the project name in the pop-up window and click "Create".
- Click "Extensions" in the code drawer.
- Enter "Jacdac" in the pop-up interface and click the search icon. Select the Jacdac software library as shown.
Step 2:
- Connect the micro:bit to the computer using a data cable. Note: If the micro:bit is running a Jacdac program for the first time, please pre-install a blank Jacdac program on the micro:bit first; otherwise, skip this step.
- Connect the sensor. MakeCode will automatically recognize it and simulate its status. The sensor will provide real-time feedback in the simulation area.
- Click "ADD BLOCKS" for the sensor extension module. Note: When connecting a new sensor, repeat the operation of clicking "ADD BLOCKS" for the sensor extension module.

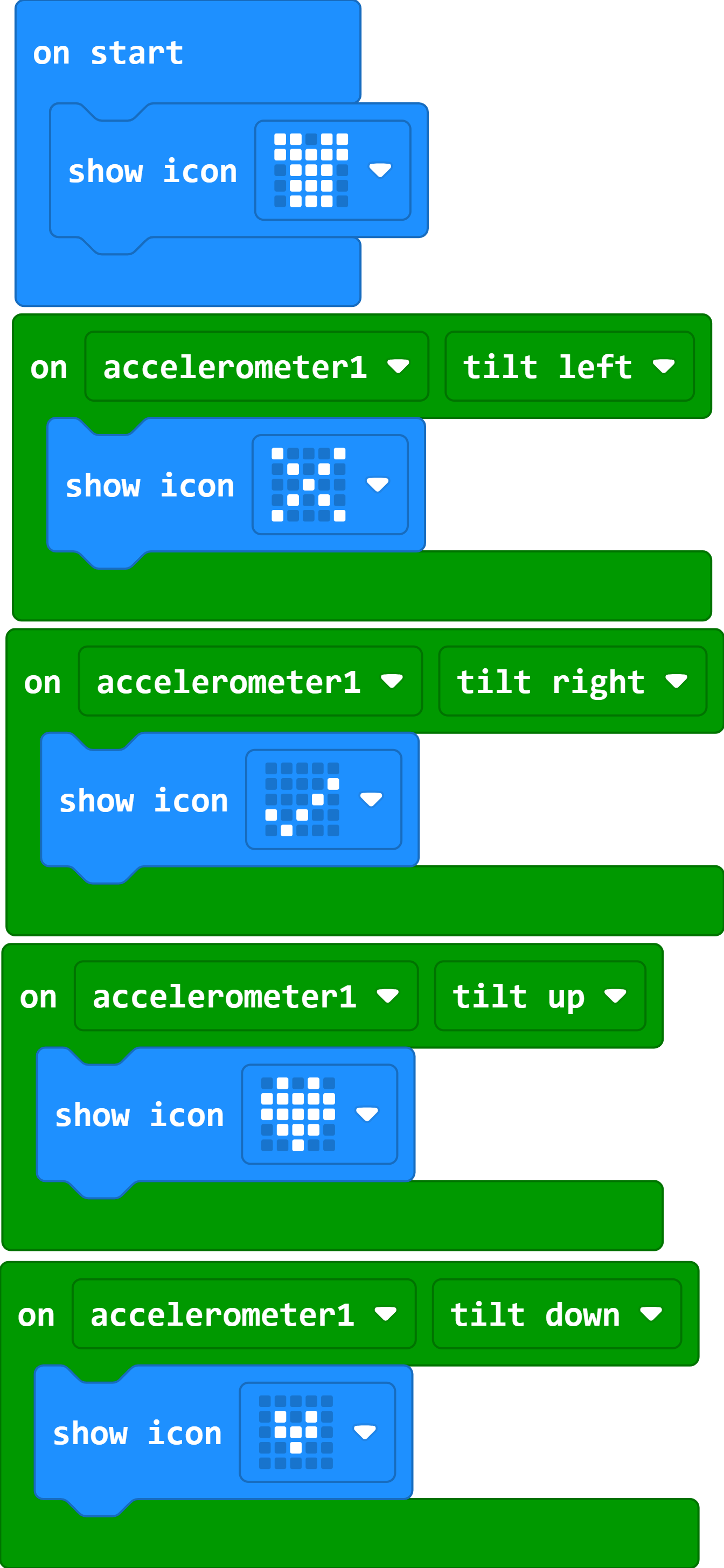

Program Example as Shown
Reference Program Link
https://makecode.microbit.org/_PPLLhc8vYHij
You can also download it via the embedded link:

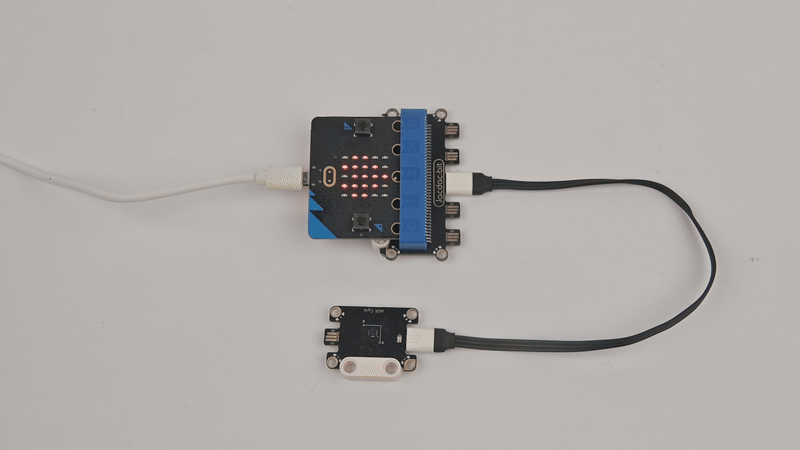

Results
- When the gyroscope tilts left, the micro:bit displays "×".
- When it tilts right, the micro:bit displays "√".
- When it tilts upward, the micro:bit displays "❤️".
- When it tilts downward, the micro:bit displays "♡".
