Octopus Dust Sensor Detector Module with Sharp GP2Y1010AU0F(EF11083)
Introduction
Octopus Dust Sensor Detector Module with Sharp GP2Y1010AU0F adopts Sharp optical dust sensor(GP2Y1010AU0F). It is used to detect the density of dust particle with diameter beyond 0.8μm such as cigarette smoke.
Products Link
ELECFREAKS Octopus Dust Sensor (Sharp GP2Y1010AU0F)
Characteristics
The 3-pins ports is easy to plug and play.
Specifications
| Item | Parameter |
|---|---|
| SKU | EF11083 |
| Sensitivity | 0.5V /（100μg/ m3） |
| Effect Range | 500μg/ m3 |
| Working Voltage | 2.5V~5.5V |
| Working Current | 20mA（Max） |
| Working Temperature | -10℃~65℃ |
| Storage Temperature | -20℃~80℃ |
| Service Life | 5 years |
| Product Dimension | 63.2mm×41.3mm×21.1mm |
| Fixed Hole Size | 2.0mm |
| Vent Hole Size | 9.0mm |

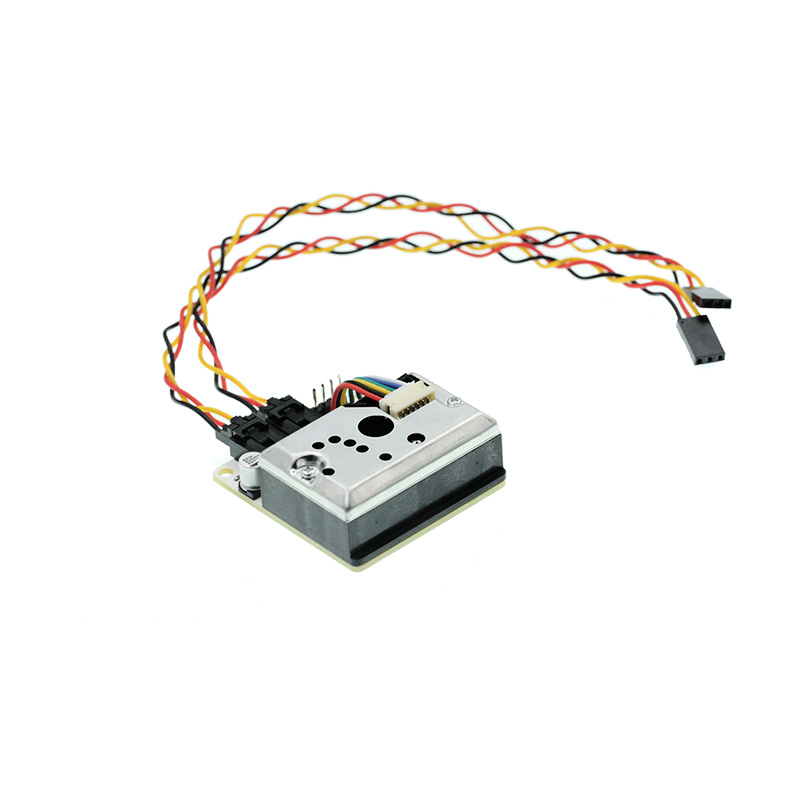

Outlook and Dimensions
Quick to Start
Materials used and connection diagram

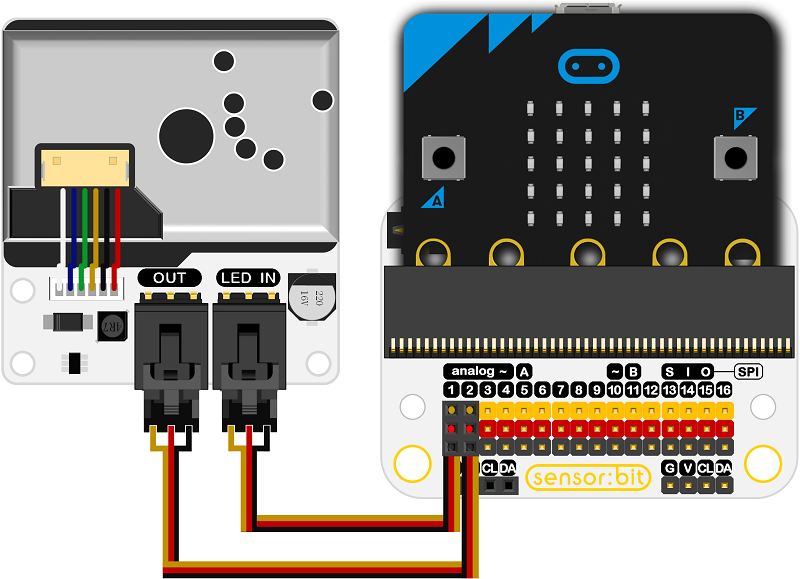

Connect the LED to P2 port and the out port to P1 port as the picture shows.
Take sensor:bit for example
Add Package
Click "Advanced"in the choice of the MakeCode to find more choices.

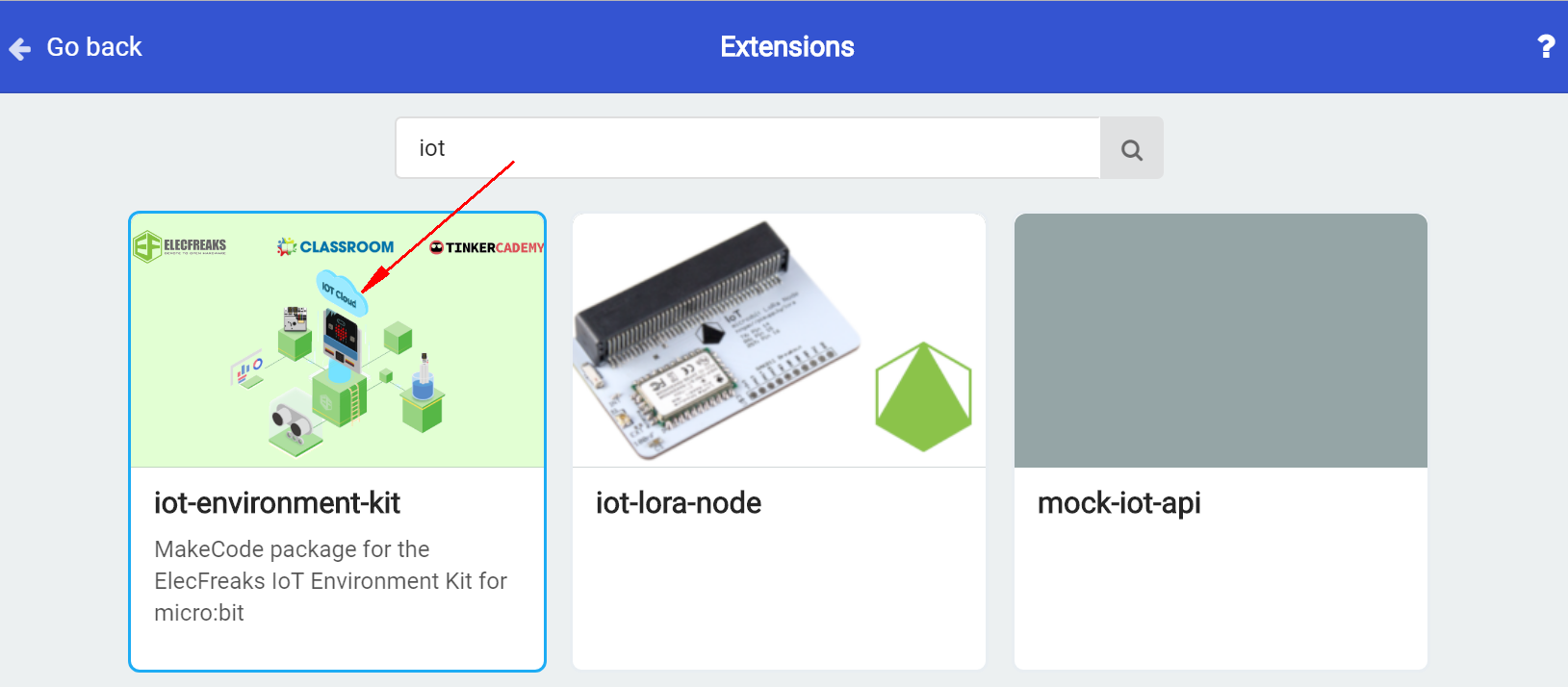

Click "Extensions", search "iot"in the dialog box and then download the "iot".
Program as the picture shows
Choose the LED on the micro:bit to show the bricks.
Choose the dust brick in the IoT package to show it on the micro:bit.
Reference
Links: https://makecode.microbit.org/_Fp7JYc0Wh9hY
You can also download the links below:
Result
The current value of the smoke level is showing on the micro:bit.
