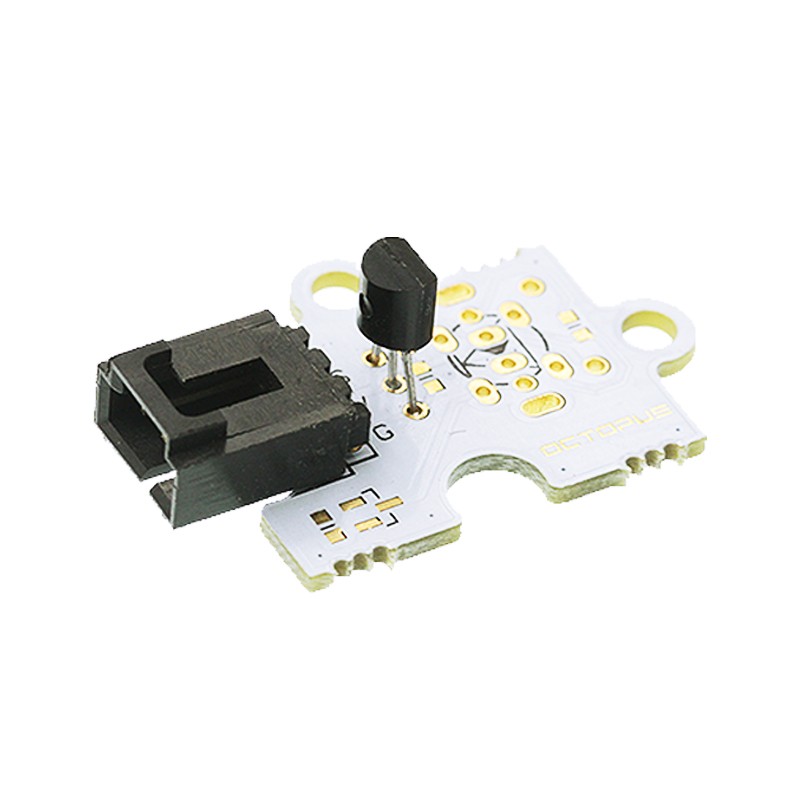

Octopus Temperature Sensor Brick TMP36(EF04079)
Introduction
Octopus TMP36 Temperature Sensor Brick is a temperature sensor with low voltage and accurate Celsius read. It can provide voltage output,which forms a linear relationship with Celsius temperature.
Products Link
ELECFREAKS Octopus TMP36 Temperature Sensor
Characteristics
The 3-pins ports is easy to plug and play.
Specifications
| Item | Parameter |
|---|---|
| SKU | EF04079 |
| Accuracy | ±2°C(Typical value) |
| Linearity | ±0.5°C（Typical value） |
| Working Voltage | 2.7V~5.5V |
| Thermal Effect Index | When power currency lower than 50 μA |
| Nominated Temperature Measuring Range | -40 °C to +125 °C, working temperature can be up to +150 °C. |
| Ratio Coefficient | + 10 mV /°C |
| Static Current | Below 50μA |
| Turn Off Current | Max 0.5μA |
Outlook and Dimensions
Quick to Start

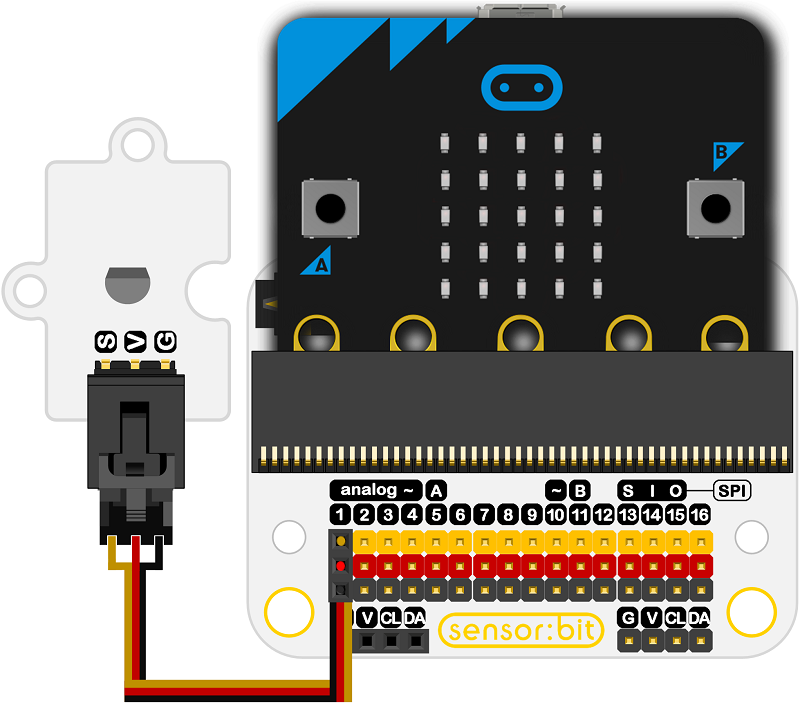

Materials used and connection diagram
Connect to the P1 port
Take sensor:bit for example
Add Package
Click "Advanced"in the choice of the MakeCode to find more choices.

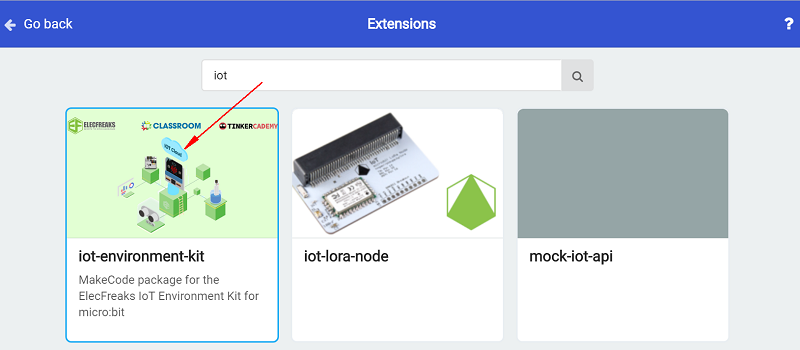

Click "Extensions", search "iot"in the dialog box and then download it.

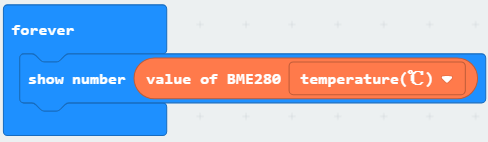

Program as the picture shows
Choose the display brick for the micro:bit.
Choose the function of showing the temperature from the IoT package.
The temperature is showing on the micro:bit.
Reference
Links:https://makecode.microbit.org/_URRdVrPFX68R
You can also download the links below:
Result
The current temperature is showing on the micro:bit.
