Sonar:bit(EF04089)
Introduction
Sonar:bit is a 3-wire ultrasonic module with the working voltage between 3-5V. It is available to be used to 3.3V or 5V micro-controller system. With only one 3-wire(GVS) cable, it can work properly. Compared to the normal 4-wire ultrasonic module, it has saved one IO port. The measurement range of sonar:bit is 4cm-400cm. It can output stable and accurate measurement data with ±1cm tolerance only. It's available for short distance measuring in robtics device, micro:bit and Arduino etc.
Products Link
Characteristics
The input voltage is 3V~5V, both micro:bit and Arduino are able to drive it. Standard 3-GVS cable, occupy one IO port only.
Specification
| Item | Parameter |
|---|---|
| Name | Sonar:bit |
| SKU | EF04089 |
| Input Voltage | DC 3-5V |
| Measurement Distance | 4-400cm |
| Tolerance | 1cm |
| Size | 40.60× 51.60mm |
| Net Weight | 12g |
Outlook and dimensions
Pins diagram
The probes send out and receive ultrasonic signals.
Main parts information
Emitting probes
The emmiting probes send out ultrasonic signals.
Receving probes
The receiving probes receive ultrasonic signals.
Chips MCU
Core controlling chips
Emitting signals driving chips
The transmitting signal driving chip is used to provide the transmitting ultrasonic signal for driving the ultrasonic transmitting probe.
Receiving signals driving chips
The receiving signal processing chip is used for receiving and processing the ultrasonic echo signal, and feeding back the processed signal to the main control chip.
G-V-S controlling port
G-V-S are used for the controlling of the sonar:bit by other devices.
Quick start
Materails required and connections diagram
Connect the sonar:bit to the P1 port of the iot:bit and the micro:bit to the computer.
Take iot:bit for an example
Step 1

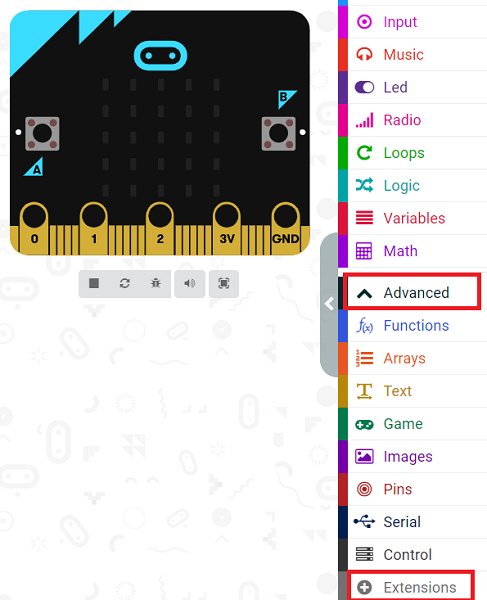

Click “Advanced“ in the MakeCode drawer and click “Extentions“ to see more choices.
We need to add a package for programming, . Click “Extensions” in the bottom of the drawer and search with “https://github.com/elecfreaks/pxt-sonarbit” in the dialogue box to download it.
Note: If you met a tip indicating that the codebase will be deleted due to incompatibility, you may continue as the tips say or build a new project in the menu.
Step 2
In forever block, show the returned value from Sonar:bit in digit.
Reference
Link: https://makecode.microbit.org/_eyU2yC79fXyc
You may also download it directly below:
Result
The distance between the ultrasonic module and the object is displayed on the micro:bit with unit in cm.
